A-Tex Ultrajet DPM-K8 All Paper is the solution for digital printing for all paper from jumbo rolls, that equipped with 8 print heads and printing width of 1830mm. This printer is furnished with eco dryer and selection of printing resolution are 600x300dpi, 600x600dpi, 600x1200dpi, 600x1800dpi, 1200x1200dpi or 1200x1800dpi.

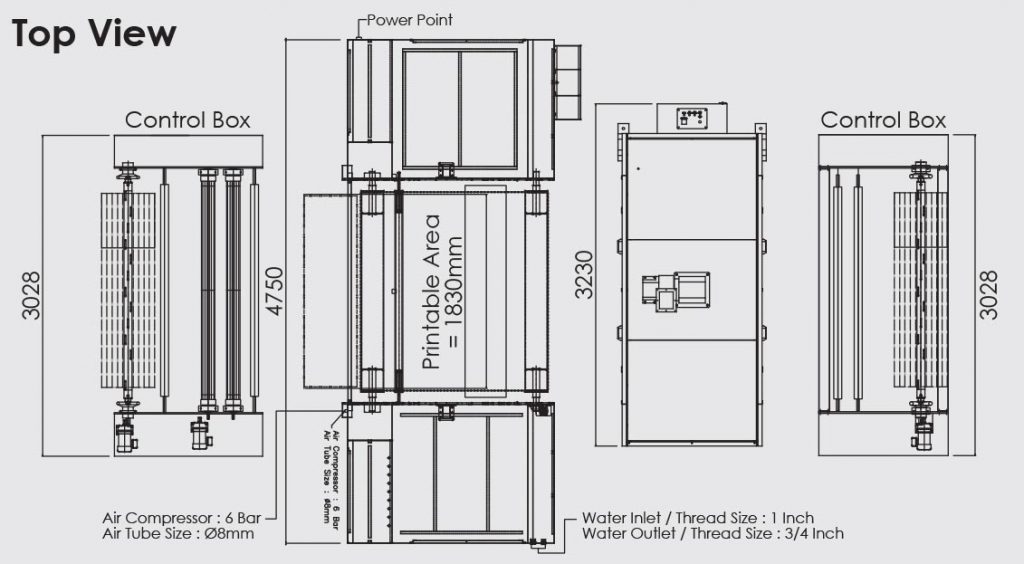

Top View
Side View
Category : Small
Model : DPM-K8
Line of head : 2
Print head : 8
Color combination : 4 color
Capacity : 200 – 400m2/hr
Printing width : 1830mm
Blanket width : 1875mm
Carriage speed : 900mm/sec – 1250mm/sec
Greyscale : 5 level greyscale with jetting volume of 5, 7, 12 or 18pl per line / head
Firing frequency : 20 / 30Khz
Carriage control : Magnetic transmission heavy duty linear motor on Y, with zero vibration
Blanket movement : Servo drive
Ink supply : Individual color channel with cleaning liquid circulation system
Ink control : Air generated positive and negative pressure
Ink indication : Display on touch panel
Ink type : Sublimation and special pigment decorative ink
Filter : Degassing and LCF filter
Cleaning station : Ultrajet air suction cleaning (Patent no:PI2014000707, pending US patent)
Display : 10” touch panel
Interface : Express PCI and fiber optic
Control : Modbus (motherboard to PLC)
RIP : UltraPrint Queue, support UltraPrint RIP, TexPrint RIP and NeoStampa RIP
Electronic : PCIe, Plane Board, USB & HDB
Electrical : 415V/3phase, working 20amp, isolator 30amp
Passes : 1, 2, 3, 4, 8, 16 passes, support layer print
Washing unit : SUS washing tank with brush and sponge, modular design
Side track : 1mm
Compressed air : 6 bar (supply by buyer)
Operation environment : 20°C – 25°C with 65% – 75% humidity
Print resolution : 600 x 300dpi, 600 x 600dpi, 600 x 1200dpi, 600 x 1800dpi, 1200 x 1200dpi, 1200 x 1800dpi
Structure : Robust design; State of art
Structure : Robust design
Media : Air shaft, 300mm diameter paper
Tension control : Motor release media with tension unit
Step control : Step tension control unit adjusted to passes print
Centering : 2 rubberised centering roller unit
Online : Online control from print unit
Roller : Bubble free cross cut roller
Panel : On module button panel
Model : Eco dryer
Heater : Hot air circulation
Roller : Teflon coated roller
Temperature : Thermometer control
Online : Online control from print unit
Panel : On module button control
Structure : Robust design
Winding : Centering auto adjust to follow media edge
Media : Air shaft, 300mm diameter
Roller : Bubble free cross cut roller
Tension control : Motor winding media with tension unit
Sensor : Precision edge sensor control
Online : Online control from print unit
Panel : On module button control & sensor panel
